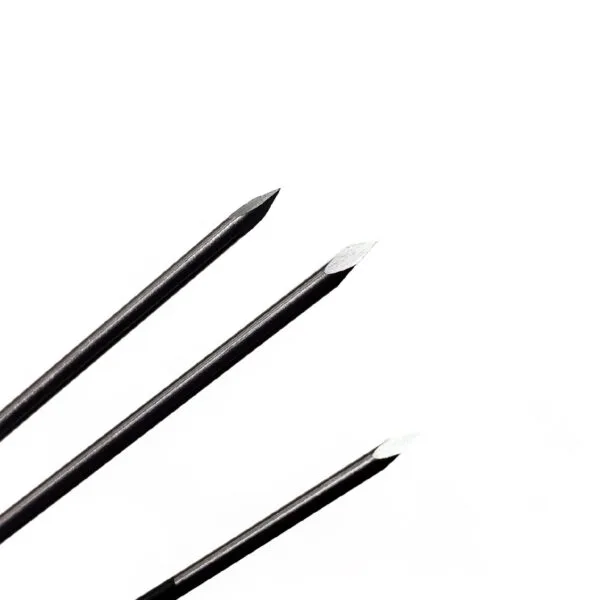

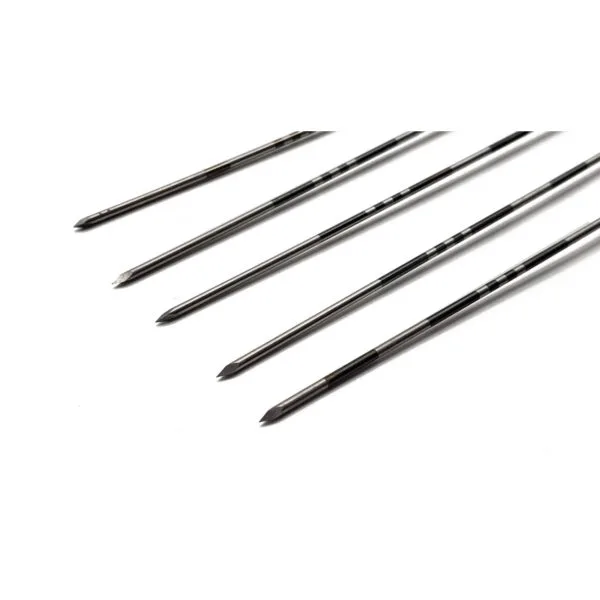

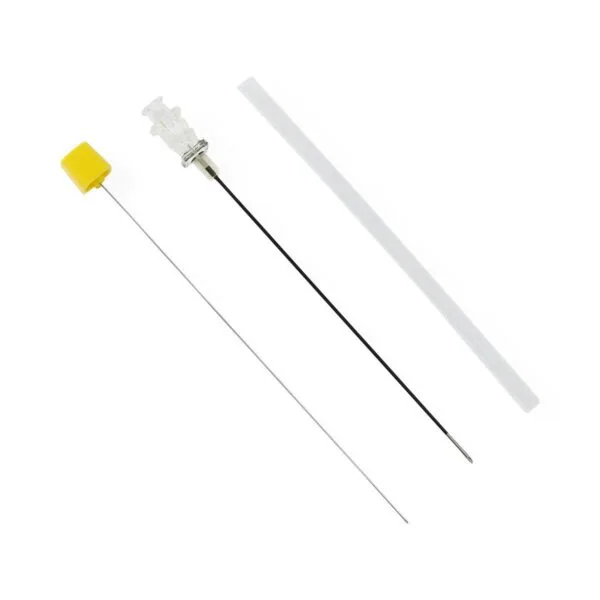

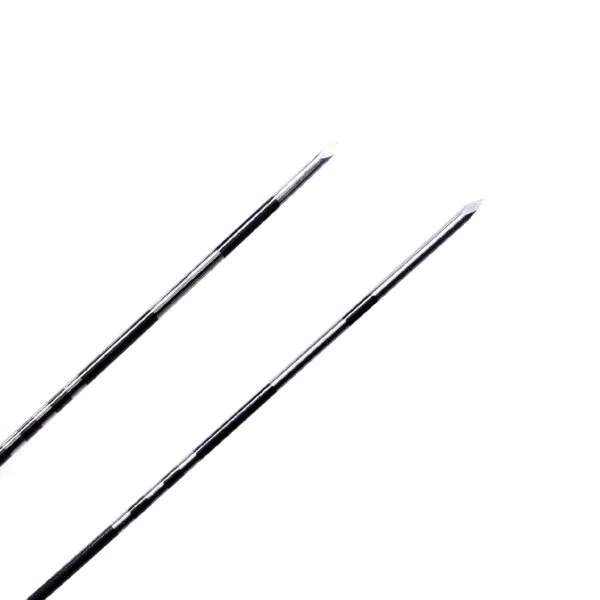

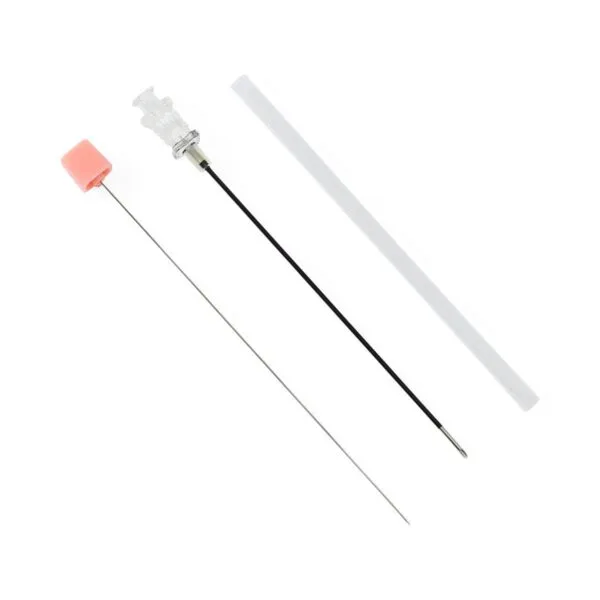

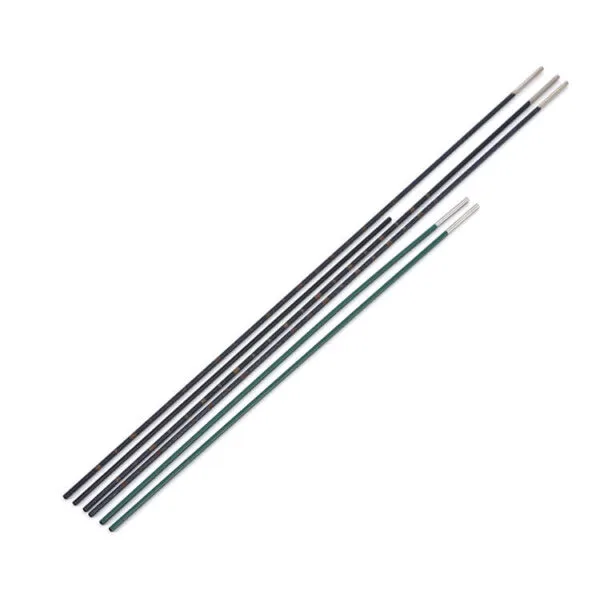

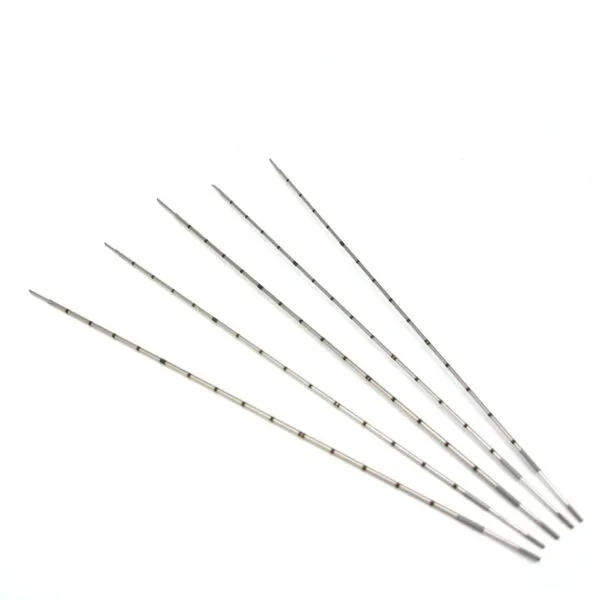

Custom Ablation Electrode Needle by ZorayPT

ZorayPT’s Ablation Electrode Needle is a precision-engineered solution designed for safe and effective ablation procedures, ensuring reliability and accuracy in minimally invasive treatments. As a leading one-stop OEM/ODM manufacturer, with all in-house plastic molding, metal processing, and cleanroom assembly, we deliver superior quality custom Ablation Electrode Needles tailored for advanced medical interventions. The needle features a length of 50mm-200mm (customizable), outer diameter of 18G-22G (0.7mm-1.2mm, customizable), and an active tip length of 5mm-20mm (customizable), compatible with RF (monopolar or bipolar), microwave, or cryotherapy systems for versatile use. Produced in our ISO 13485-certified Class 100,000 cleanroom, the Ablation Electrode Needle is made of high-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable, with PTFE or Parylene insulation (customizable) to ensure safety during energy delivery. It includes a sharp beveled or blunt tip (customizable), radiopaque marker, scale marking for precise positioning, depth limiter for controlled insertion, and sterile packaging (EO sterilization, double-layer), all single-use with customizable design options to meet specific needs. This needle is ideal for ablation electrode procedures, providing precision in applications such as tumor ablation, pain management, and neuroablation for chronic pain relief. ZorayPT can tailor Ablation Electrode Needles based on client-provided samples, drawings, or specifications, offering advanced manufacturing processes such as Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold. Need a tailored design? We can develop custom solutions to meet your exact requirements, with handle options including short, long, or T-shaped designs. Ideal for oncology, pain management, and minimally invasive procedures, ZorayPT provides OEM/ODM solutions with faster lead times and cost-efficiency. Trust ZorayPT for your Ablation Electrode Needle needs in cutting-edge medical interventions.

Key Features

• Material: High-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable.
• Dimensions: Length (50mm-200mm), Outer Diameter (18G-22G, 0.7mm-1.2mm), Active Tip (5mm-20mm), customizable.
• Design Features: Sharp beveled or blunt tip (customizable), radiopaque marker, scale marking, depth limiter, sterile packaging (EO sterilization, double-layer), single-use, customizable.
• Ablation Type: Compatible with RF (monopolar or bipolar), microwave, or cryotherapy systems.
• Insulation: PTFE or Parylene insulation, customizable.
• Connector Type: Luer Lock, Ablation System Connector, or customized interface.
• All In-House: One-stop production guarantees superior quality.

Applications

ZorayPT Ablation Electrode Needles are ideal for:

• Tumor Ablation: Effective for precise tumor treatment.
• Pain Management: Reliable for chronic pain relief.
• Neuroablation: Suitable for nerve-related pain interventions.
  With ISO 13485 standards and faster lead times, we provide cost-efficient solutions. Contact us to customize your Ablation Electrode Needle.

Why Choose ZorayPT?

• One-Stop Manufacturing: All in-house plastic molding, metal processing, and cleanroom assembly.
• ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.
• Superior Quality: Precision tools for medical excellence.
• Faster Lead Times: Automated production for quick delivery.
• Cost-Efficiency: Integrated manufacturing reduces costs.
• Advanced Customization: ZorayPT can customize needles based on client-provided samples, drawings, or specifications, offering processes like Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold.
  Enhance your ablation procedures with ZorayPT’s solutions. Contact us today!

Ablation Electrode Needle Specifications
