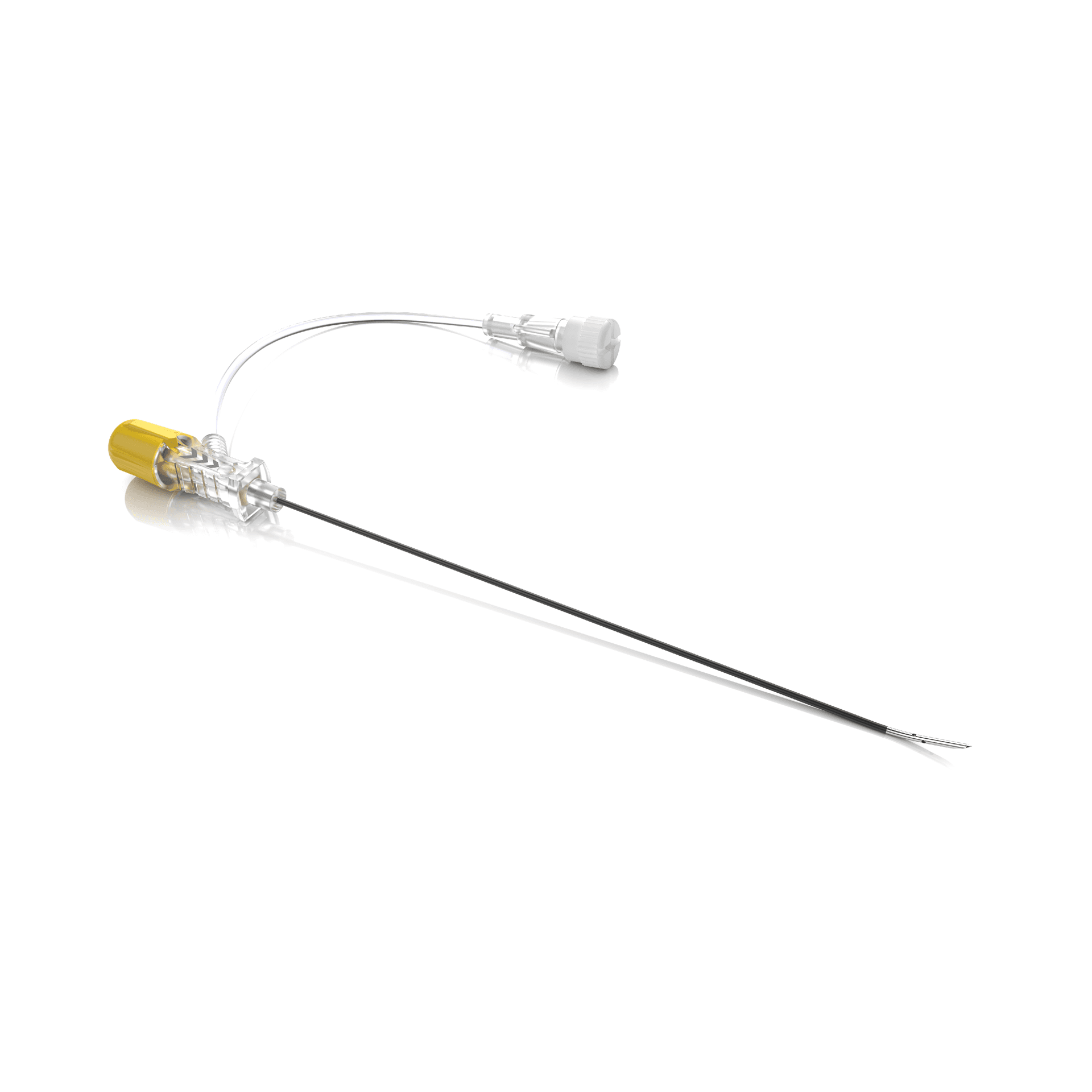

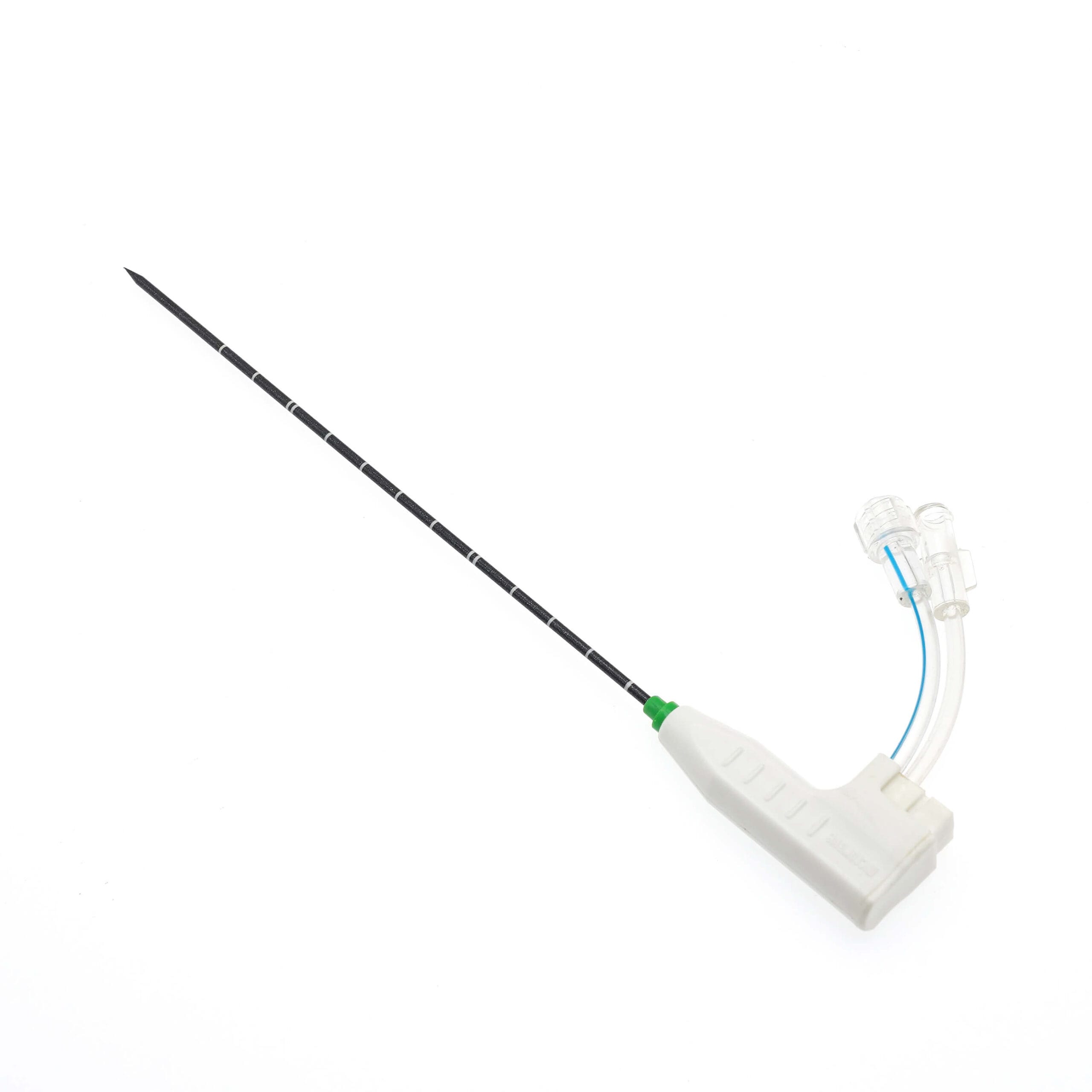

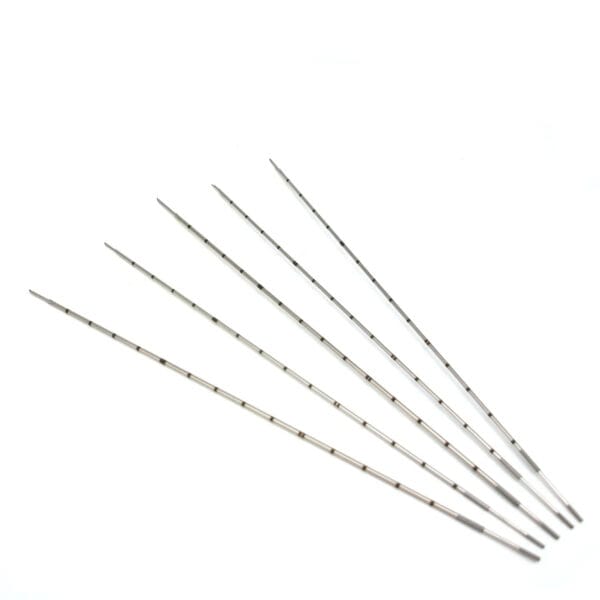

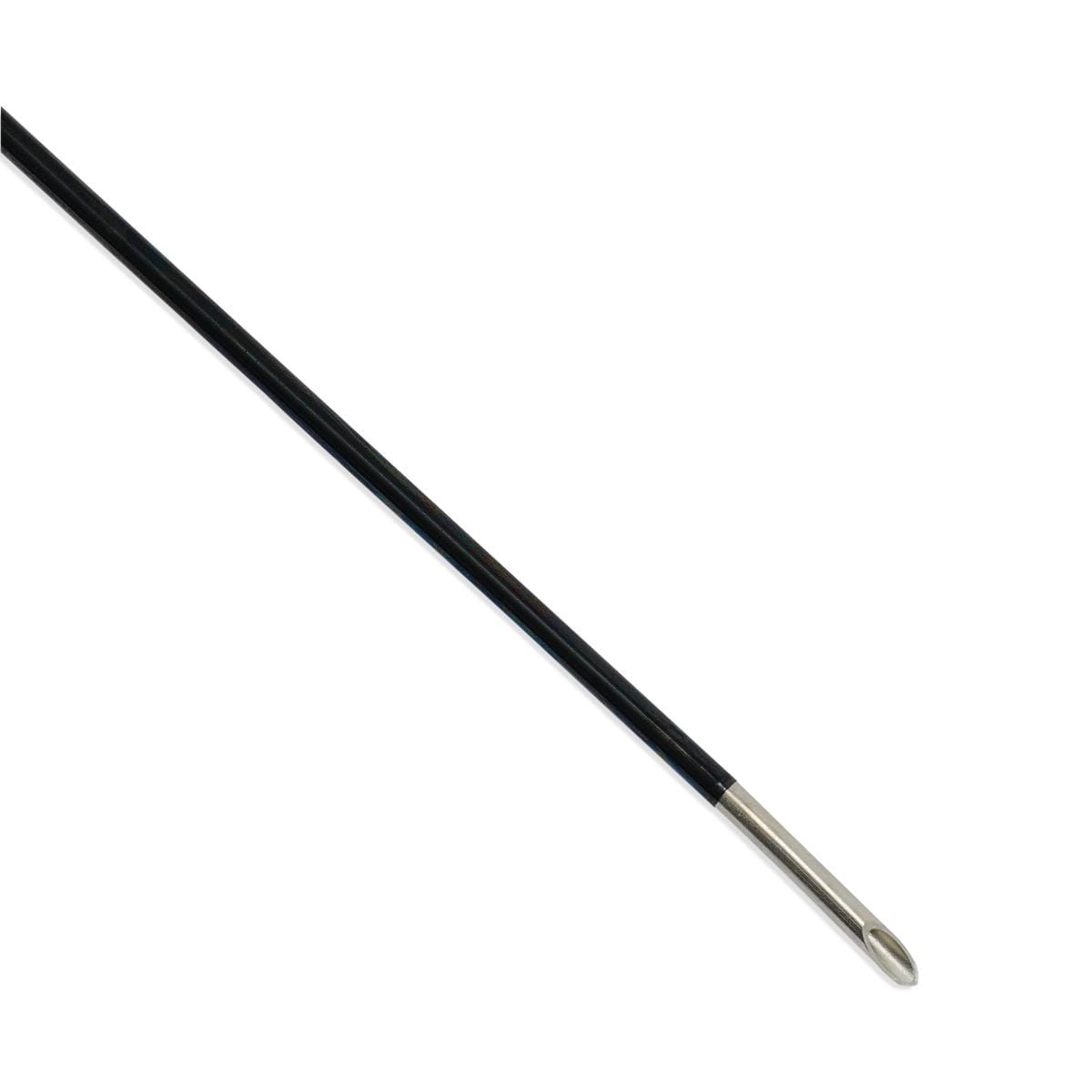

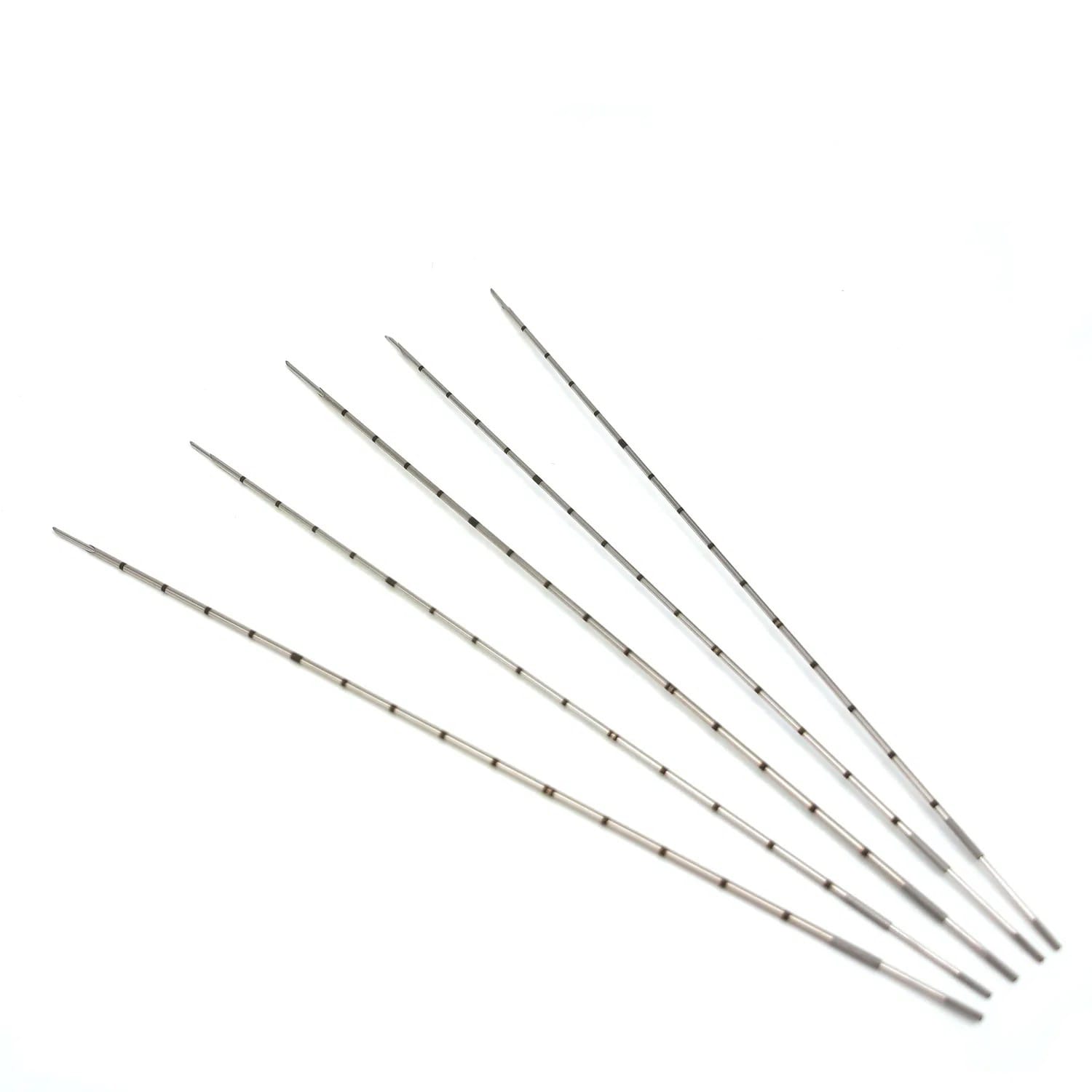

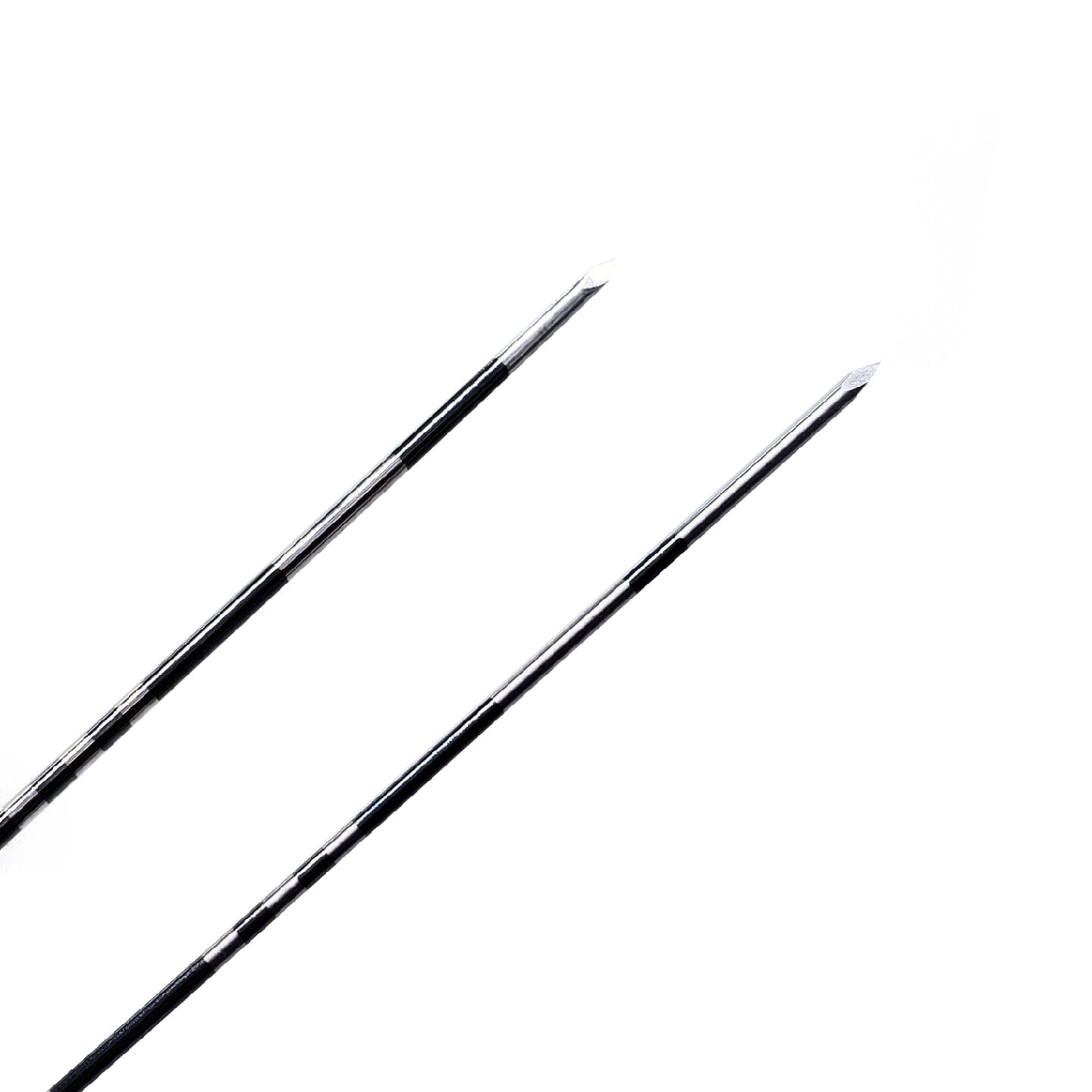

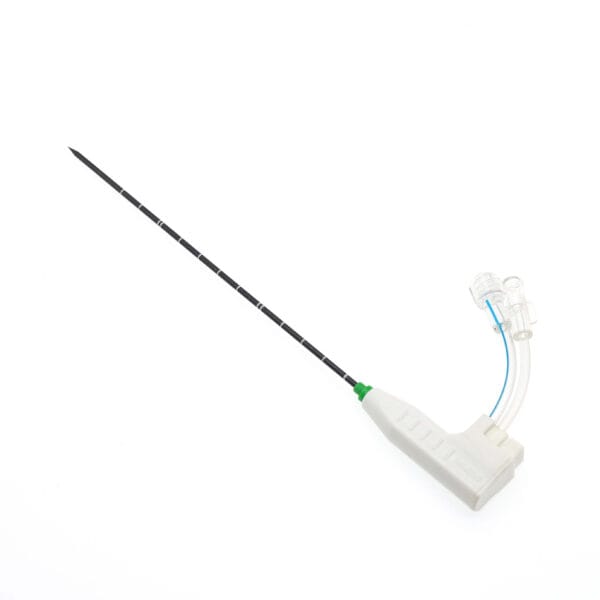

Ablation Needle

ZorayPT’s custom Ablation Needle for minimally invasive procedures features a 50mm-200mm length, 18G-22G diameter, and 5mm-20mm active tip, made of high-grade medical stainless steel or titanium. With PTFE/Parylene insulation and Luer Lock/RF Generator Plug connectors, our one-stop OEM/ODM solutions deliver superior quality, faster lead time, and cost-efficiency.

Custom Ablation Needle by ZorayPT

ZorayPT’s Ablation Needle is a precision-engineered solution designed for safe and effective minimally invasive ablation procedures, ensuring reliability and accuracy in medical interventions. As a leading one-stop OEM/ODM manufacturer, with all in-house plastic molding, metal processing, and cleanroom assembly, we deliver superior quality custom Ablation Needles tailored for diverse applications. The needle features a length of 50mm-200mm (customizable), outer diameter of 18G-22G (0.7mm-1.2mm, customizable), and an active tip length of 5mm-20mm (customizable), supporting both monopolar and bipolar electrode types for versatile use. Produced in our ISO 13485-certified Class 100,000 cleanroom, the Ablation Needle is made of high-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable, with a PTFE or Parylene insulation coating (customizable) for safety during energy delivery. It includes a sharp beveled or blunt tip (customizable), radiopaque marker, scale marking for precise positioning, depth limiter for controlled insertion, and sterile packaging (EO sterilization, double-layer), all single-use with customizable design options to meet specific needs. This needle is ideal for minimally invasive ablation, providing precision in procedures such as nerve pain relief, joint ablation, tumor ablation (e.g., liver, lung, thyroid), and other interventional treatments. ZorayPT can tailor Ablation Needles based on client-provided samples, drawings, or specifications, offering advanced manufacturing processes such as Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold. Need a tailored design? We can develop custom solutions to meet your exact requirements, with handle options including short, long, T-shaped, or custom designs. Ideal for various ablation procedures, ZorayPT provides OEM/ODM solutions with faster lead times and cost-efficiency. Trust ZorayPT for your Ablation Needle needs in advanced medical interventions.

Key Features

  • Material: High-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable.
  • Dimensions: Length (50mm-200mm), Outer Diameter (18G-22G, 0.7mm-1.2mm), Active Tip (5mm-20mm), customizable.

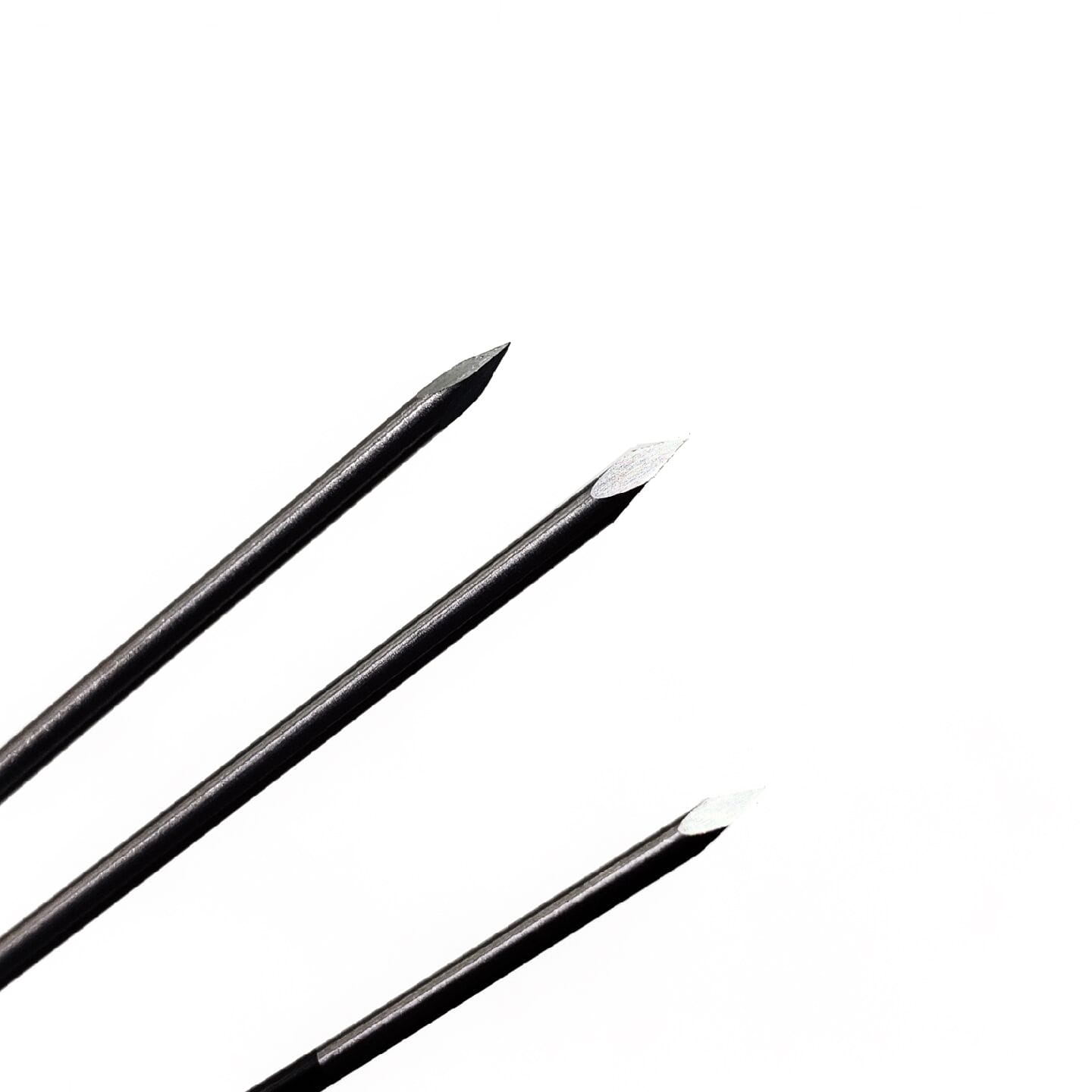

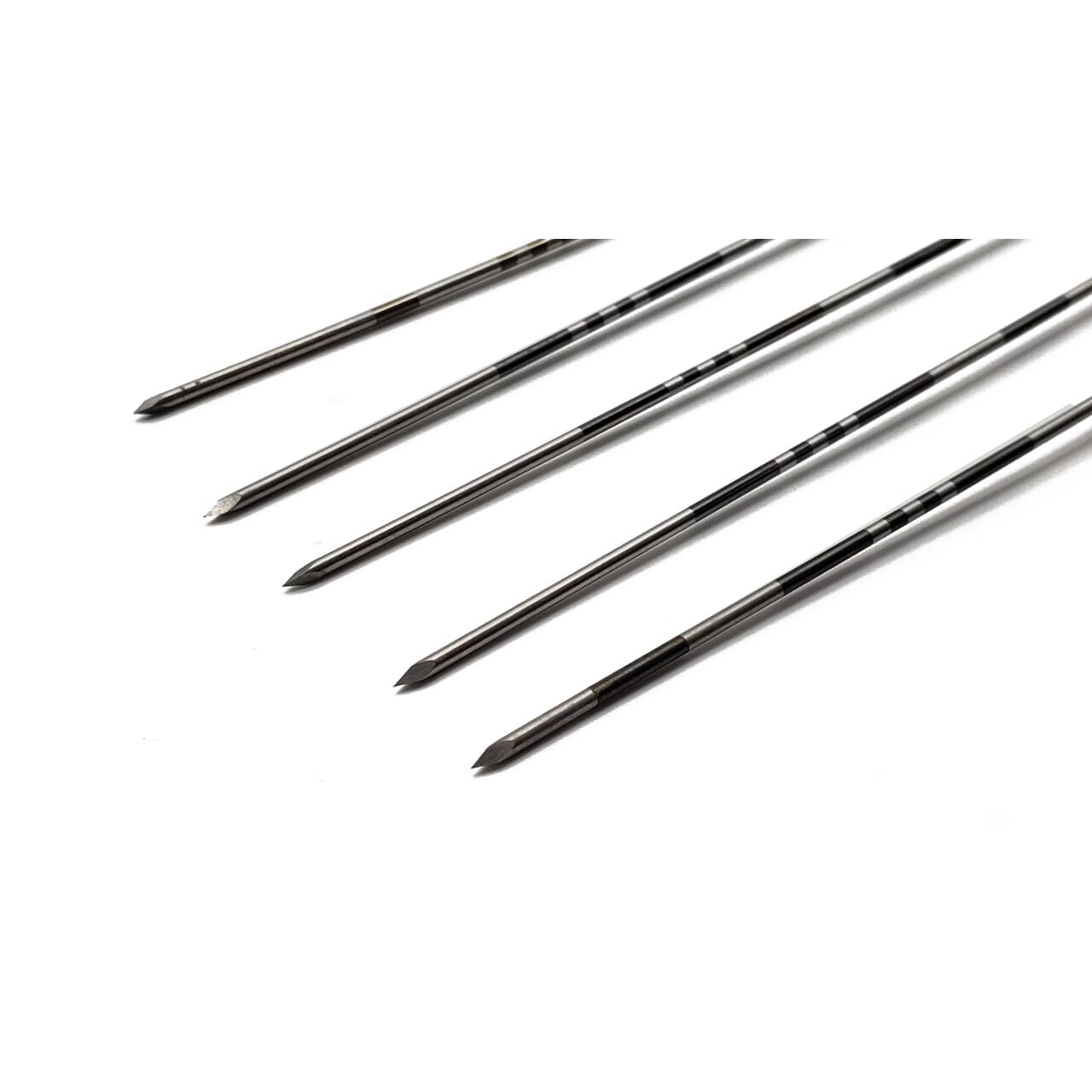

  • Design Features: Sharp beveled or blunt tip (customizable), radiopaque marker, scale marking, depth limiter, sterile packaging (EO sterilization, double-layer), single-use, customizable.
  • Electrode Type: Monopolar or Bipolar, with PTFE/Parylene insulation (customizable).
  • Connector Type: Luer Lock, RF Generator Plug, or customized interface.
  • All In-House: One-stop production guarantees superior quality.

Applications

ZorayPT Ablation Needles are ideal for:

  • Nerve Pain Relief: Effective for neural ablation in chronic pain management.
  • Joint Ablation: Precise treatment for joint-related pain.
  • Tumor Ablation: Suitable for liver, lung, and thyroid tumor ablation.
    With ISO 13485 standards and faster lead times, we provide cost-efficient solutions. Contact us to customize your needle.

Why Choose ZorayPT?

  • One-Stop Manufacturing: All in-house plastic molding, metal processing, and cleanroom assembly.
  • ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.
  • Superior Quality: Precision tools for medical excellence.
  • Faster Lead Times: Automated production for quick delivery.
  • Cost-Efficiency: Integrated manufacturing reduces costs.
  • Advanced Customization: ZorayPT can customize needles based on client-provided samples, drawings, or specifications, offering processes like Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold.
    Enhance your ablation procedures with ZorayPT’s solutions. Contact us today!

Ablation Needle Specifications

Parameter Details
Length 50mm-200mm, customizable
Outer Diameter 18G-22G (0.7mm-1.2mm), customizable
Active Tip Length 5mm-20mm, customizable
Electrode Type Monopolar or Bipolar, customizable
Material High-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable
Insulation Coating PTFE or Parylene, customizable
Connector Type Luer Lock, RF Generator Plug, or customized interface

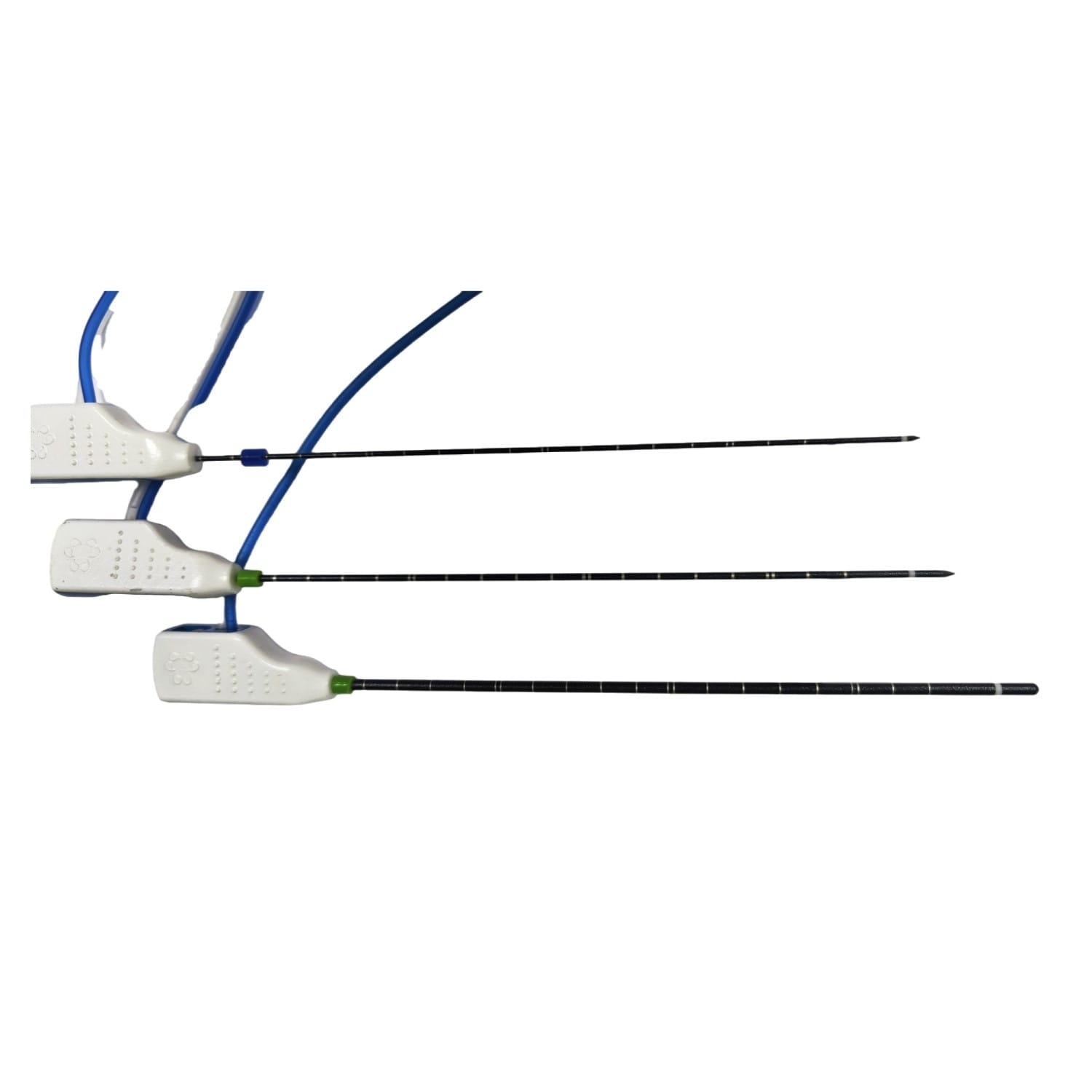

Handle Type Short, long, T-shaped, or custom
