Extra-long Semi-automatic Biopsy Needle (60cm Length) by ZorayPT

ZorayPT’s extra-long semi-automatic biopsy needle (Model ZPT-VELSABN-001) is the world’s first 60 cm veterinary semi-automatic biopsy system engineered exclusively for transvaginal ultrasound-guided ovarian stroma and corpus luteum sampling in large livestock — primarily mares and cows. This revolutionary instrument enables veterinarians to safely obtain high-quality luteal and stromal tissue samples under real-time ultrasound guidance via a follicular aspiration guide attached to a microconvex transducer, dramatically advancing reproductive research, fertility assessment, and embryo transfer programs.

Standard human semi-automatic biopsy needles max out at 25 cm — far too short for equine or bovine transvaginal access. To achieve a full 60 cm working length while retaining the speed and reliability of spring-loaded automation, ZorayPT completely re-engineered every component:

• Cannula and stylet are manufactured from ultra-high-grade 304/316L veterinary stainless steel with enhanced rigidity, toughness, and inner-wall mirror polishing to prevent tissue drag over extreme length.
• Proprietary reinforced spring mechanism and optimized trigger system deliver consistent throw at 60 cm without loss of firing power.

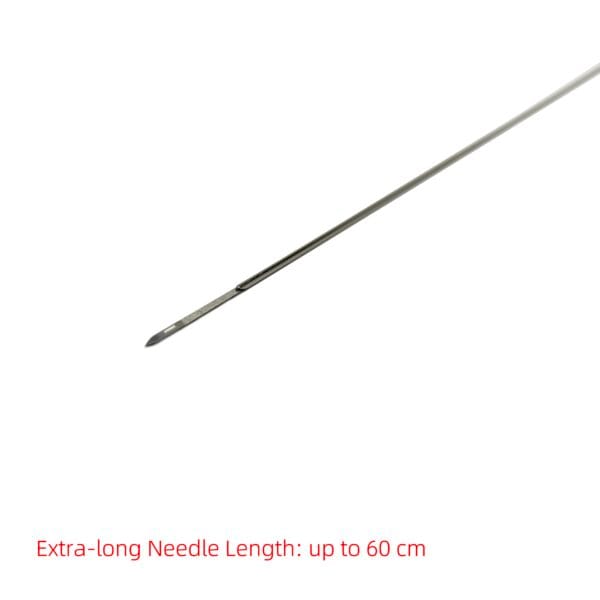

• 15 × 1.6 mm deep sample notch surrounded by a 16G (standard) cutting cannula (14G–18G customizable) guarantees large, intact samples even from dense luteal tissue.

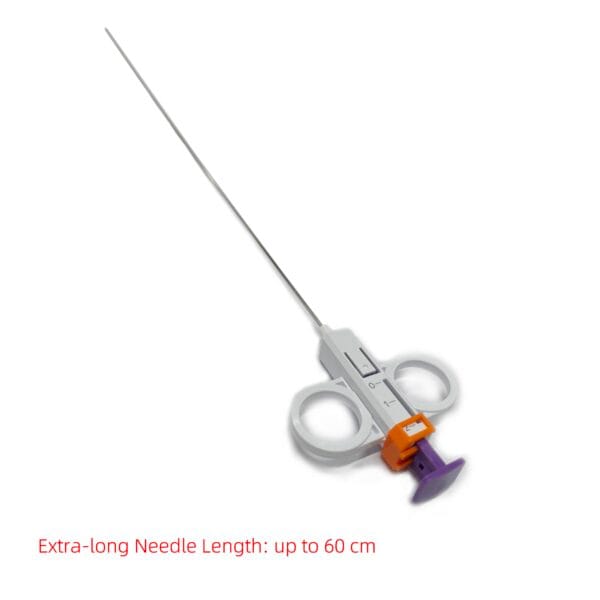

The lightweight ergonomic handle incorporates dual safety locks and one-handed cocking, while the extended rigid shaft maintains perfect column strength during deep transvaginal passage. The needle is fully compatible with standard luer-lock syringes and existing ultrasound follicle aspiration platforms.

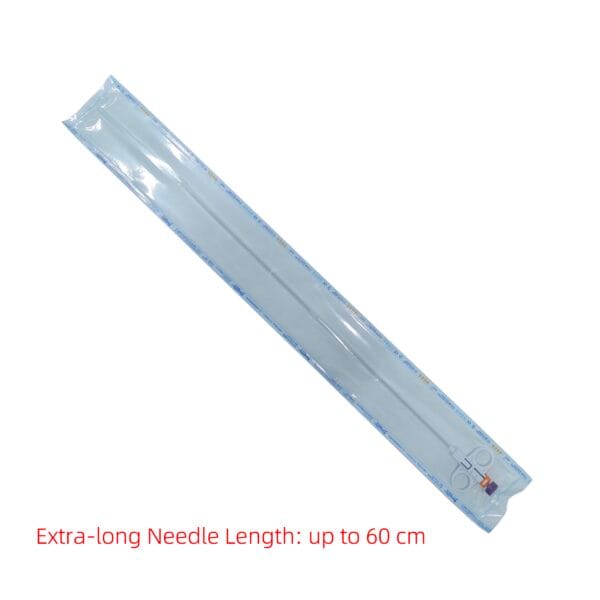

Each ZPT-VELSABN-001 is individually EO sterilized, blister-packed, and 100 % inspected under magnification to ensure flawless surface finish and notch geometry. Full customization of gauge, notch depth, and marking is available for research institutions and commercial breeders.

Key Features

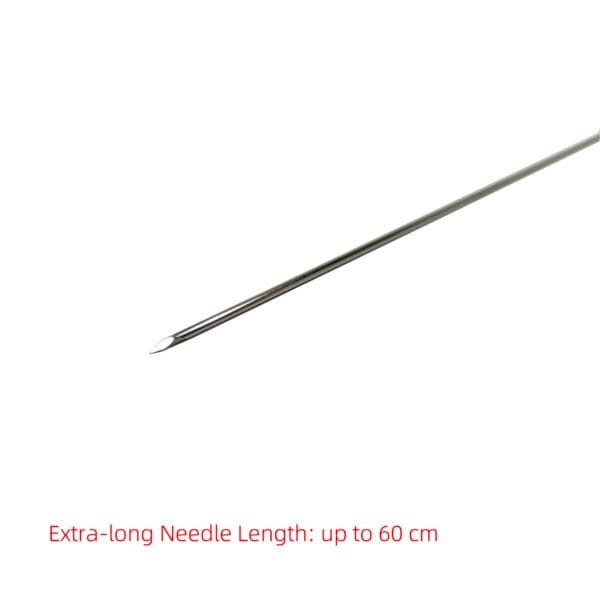

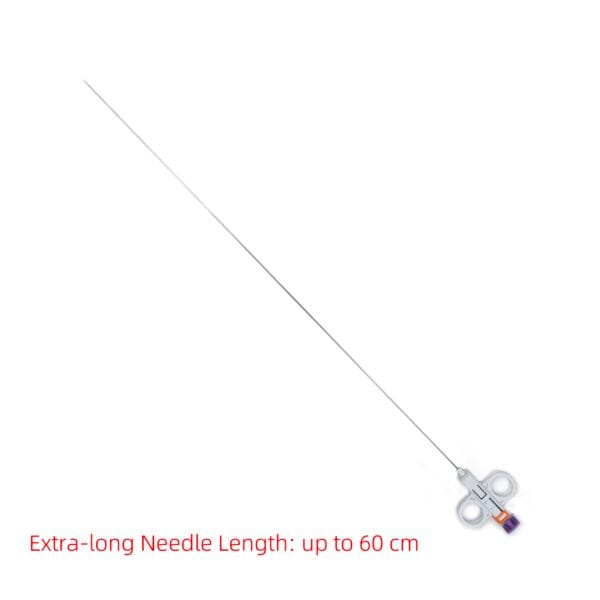

• Total Length: 600 mm (60 cm) – world’s longest semi-automatic veterinary biopsy needle
• Gauge: 14G / 16G / 18G (customizable)
• Sample Notch: 15 × 1.6 mm (standard) – customizable depth
• Throw: 22 mm spring-loaded, full power at 60 cm
• Material: Veterinary-grade 304/316L SS with enhanced rigidity & inner-wall polishing
• All In-House: One-stop OEM/ODM from raw tube to finished device

Applications

• ZorayPT extra-long semi-automatic biopsy needles are ideal for:
  • Equine & Bovine Corpus Luteum Biopsy
  • Ovarian Stroma Research Sampling
  • Fertility & Embryo Transfer Studies With ISO 13485 standards and faster lead times, we deliver cost-efficient solutions. Contact us to customize your ZPT-VELSABN-001.

Why Choose ZorayPT?

• One-Stop Manufacturing: All in-house processes for seamless quality control.
• ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.
• Superior Quality: Only manufacturer capable of 60 cm semi-auto veterinary biopsy.
• Faster Lead Times: In-house tube drawing + spring production.
• Cost-Efficiency: Direct factory pricing for research institutes & breeders. Lead the future of large-animal reproductive medicine with ZorayPT’s ZPT-VELSABN-001. Request a quote today!

Extra-long Semi-automatic Biopsy Needle (60cm Length) Specifications
