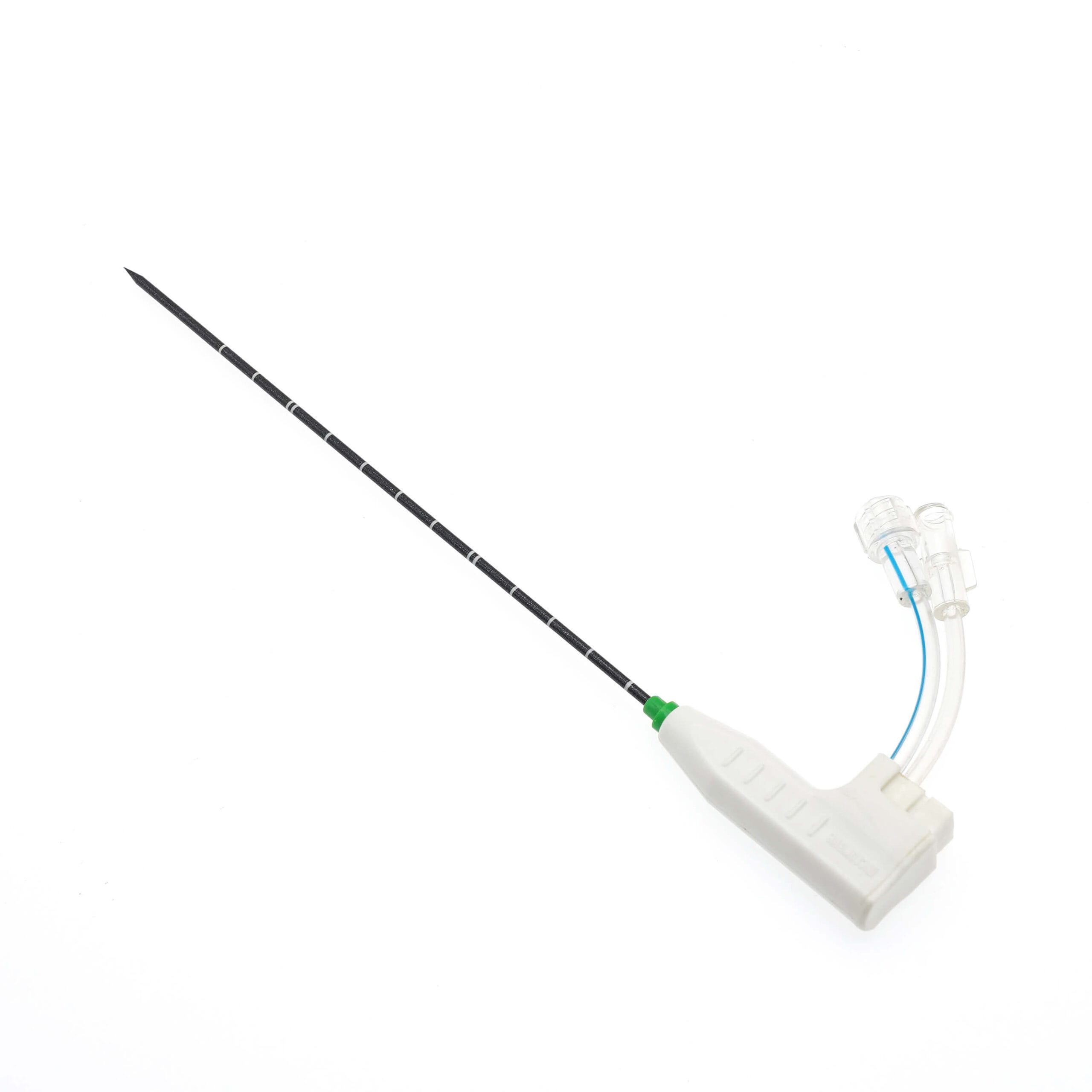

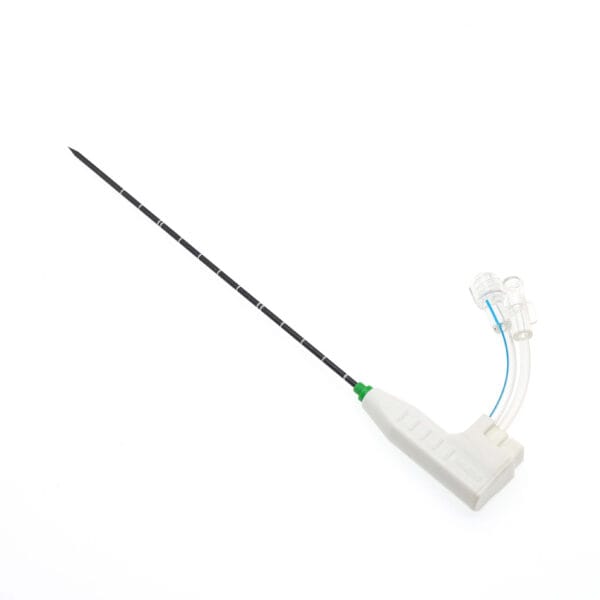

Custom Nerve Ablation Needle by ZorayPT

ZorayPT’s Nerve Ablation Needle is a precision-engineered solution designed for safe and effective nerve ablation procedures, ensuring reliability and accuracy in chronic pain management. As a leading one-stop OEM/ODM manufacturer, with all in-house plastic molding, metal processing, and cleanroom assembly, we deliver superior quality custom Nerve Ablation Needles tailored for advanced medical interventions. The needle features a length of 50mm-200mm (customizable), outer diameter of 18G-22G (0.7mm-1.2mm, customizable), and an active tip length of 5mm-20mm (customizable), supporting both monopolar and bipolar electrode types for versatile use. Produced in our ISO 13485-certified Class 100,000 cleanroom, the Nerve Ablation Needle is made of high-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable, with a PTFE or Parylene insulation coating (customizable) for safety during energy delivery. It includes a sharp beveled or blunt tip (customizable), radiopaque marker, scale marking for precise positioning, depth limiter for controlled insertion, and sterile packaging (EO sterilization, double-layer), all single-use with customizable design options to meet specific needs. This needle is ideal for nerve ablation, providing precision in procedures such as pain relief for chronic conditions, facial nerve ablation, and spinal nerve ablation. ZorayPT can tailor Nerve Ablation Needles based on client-provided samples, drawings, or specifications, offering advanced manufacturing processes such as Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold. Need a tailored design? We can develop custom solutions to meet your exact requirements, with handle options including short, long, or T-shaped designs. Ideal for pain management and interventional procedures, ZorayPT provides OEM/ODM solutions with faster lead times and cost-efficiency. Trust ZorayPT for your Nerve Ablation Needle needs in cutting-edge medical interventions.

Key Features

• Material: High-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable.

• Dimensions: Length (50mm-200mm), Outer Diameter (18G-22G, 0.7mm-1.2mm), Active Tip (5mm-20mm), customizable.

• Design Features: Sharp beveled or blunt tip (customizable), radiopaque marker, scale marking, depth limiter, sterile packaging (EO sterilization, double-layer), single-use, customizable.

• Electrode Type: Monopolar or Bipolar, with PTFE/Parylene insulation (customizable).

• Connector Type: Luer Lock, RF Generator Plug, or customized interface.

• All In-House: One-stop production guarantees superior quality.

Applications

ZorayPT Nerve Ablation Needles are ideal for:

• Chronic Pain Relief: Effective for nerve ablation in pain management.

• Facial Nerve Ablation: Precise treatment for facial nerve-related conditions.

• Spinal Nerve Ablation: Reliable for spinal nerve pain interventions.
  With ISO 13485 standards and faster lead times, we provide cost-efficient solutions. Contact us to customize your Nerve Ablation Needle.

Why Choose ZorayPT?

• One-Stop Manufacturing: All in-house plastic molding, metal processing, and cleanroom assembly.

• ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.

• Superior Quality: Precision tools for medical excellence.

• Faster Lead Times: Automated production for quick delivery.

• Cost-Efficiency: Integrated manufacturing reduces costs.

• Advanced Customization: ZorayPT can customize needles based on client-provided samples, drawings, or specifications, offering processes like Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold.
  Enhance your nerve ablation procedures with ZorayPT’s solutions. Contact us today!

Nerve Ablation Needle Specifications
