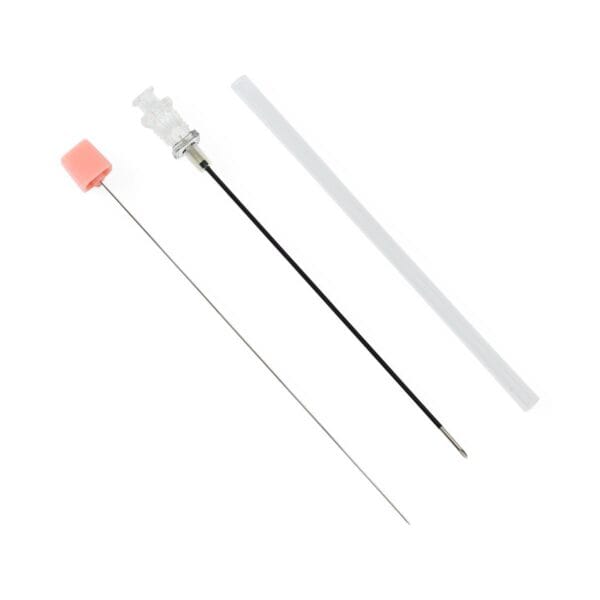

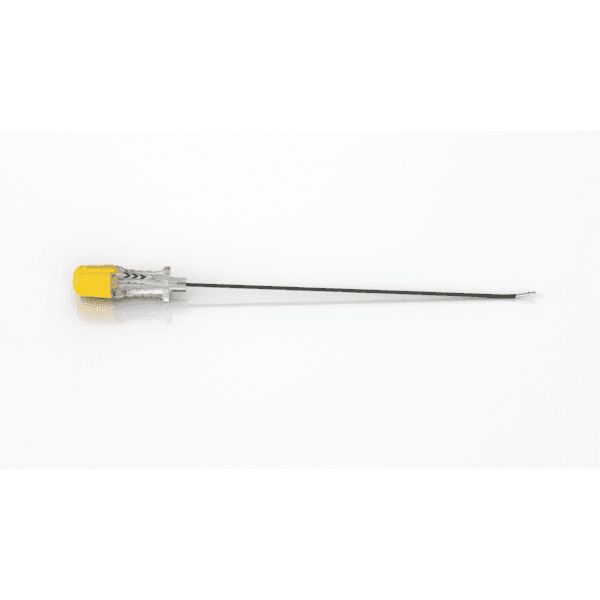

Custom Percutaneous RF Needle by ZorayPT

ZorayPT’s Percutaneous RF Needle is a precision-engineered solution designed for safe and effective percutaneous RF ablation procedures, ensuring reliability and accuracy in minimally invasive treatments. As a leading one-stop OEM/ODM manufacturer, with all in-house plastic molding, metal processing, and cleanroom assembly, we deliver superior quality custom Percutaneous RF Needles tailored for advanced medical interventions. The needle features a length of 50mm-200mm (customizable), outer diameter of 18G-22G (0.7mm-1.2mm, customizable), and an active tip length of 5mm-20mm (customizable), optimized for RF systems (monopolar or bipolar) for efficient energy delivery. Produced in our ISO 13485-certified Class 100,000 cleanroom, the Percutaneous RF Needle is made of high-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable, with PTFE or Parylene insulation (customizable) to ensure safety during RF energy delivery. It includes a sharp beveled or blunt tip (customizable), radiopaque marker, scale marking for precise positioning, depth limiter for controlled insertion, and sterile packaging (EO sterilization, double-layer), all single-use with customizable design options to meet specific needs. This needle is ideal for percutaneous RF ablation procedures, providing precision in applications such as tumor ablation, chronic pain relief, and neuroablation. ZorayPT can tailor Percutaneous RF Needles based on client-provided samples, drawings, or specifications, offering advanced manufacturing processes such as Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold. Need a tailored design? We can develop custom solutions to meet your exact requirements, with handle options including short, long, or T-shaped designs. Ideal for oncology, pain management, and minimally invasive procedures, ZorayPT provides OEM/ODM solutions with faster lead times and cost-efficiency. Trust ZorayPT for your Percutaneous RF Needle needs in cutting-edge medical interventions.

Key Features

• Material: High-grade medical stainless steel (SUS304/SUS316L), or titanium for electrode, customizable.
• Dimensions: Length (50mm-200mm), Outer Diameter (18G-22G, 0.7mm-1.2mm), Active Tip (5mm-20mm), customizable.
• Design Features: Sharp beveled or blunt tip (customizable), radiopaque marker, scale marking, depth limiter, sterile packaging (EO sterilization, double-layer), single-use, customizable.
• Ablation Type: Optimized for RF systems (monopolar or bipolar).
• Insulation: PTFE or Parylene insulation, customizable.
• Connector Type: Luer Lock, Ablation System Connector, or customized interface.
• All In-House: One-stop production guarantees superior quality.

Applications

ZorayPT Percutaneous RF Needles are ideal for:

• Tumor Ablation: Effective for precise tumor treatment.
• Chronic Pain Relief: Reliable for long-term pain management.
• Neuroablation: Precise ablation for nerve-related pain.
  With ISO 13485 standards and faster lead times, we provide cost-efficient solutions. Contact us to customize your Percutaneous RF Needle.

Why Choose ZorayPT?

• One-Stop Manufacturing: All in-house plastic molding, metal processing, and cleanroom assembly.
• ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.
• Superior Quality: Precision tools for medical excellence.
• Faster Lead Times: Automated production for quick delivery.
• Cost-Efficiency: Integrated manufacturing reduces costs.
• Advanced Customization: ZorayPT can customize needles based on client-provided samples, drawings, or specifications, offering processes like Multi-faceted grinding, Marking, Bending, Drilling, Head forming, Taper reduction Flaring, Threading, Chamfering, Flanging, Grooving, Flattening, Diameter changing, Developing, Polishing coating, Syringe base, Base mold, and Die casting mold.
  Enhance your percutaneous RF ablation procedures with ZorayPT’s solutions. Contact us today!

Percutaneous RF Needle Specifications
