Semi-automatic Ovarian Biopsy Needle by ZorayPT

ZorayPT’s semi-automatic ovarian biopsy needle (Model ZPT-VELSABN-002) is the world’s first and only 60 cm spring-loaded veterinary biopsy system specifically engineered for transvaginal ultrasound-guided ovarian tissue sampling in large breeding animals — mares, cows, and other livestock. This breakthrough device allows reproductive specialists to safely harvest high-integrity samples from ovarian stroma and corpus luteum under real-time ultrasound guidance via standard follicular aspiration platforms, dramatically advancing fertility research, embryo transfer programs, and hormonal studies.

To achieve a full 600 mm working length while retaining the speed and reliability of semi-automatic operation, ZorayPT completely re-engineered every critical component in-house:

• Cannula and stylet are drawn from medical-grade 304 or 316 stainless steel with enhanced rigidity, toughness, and mirror-polished inner walls to eliminate tissue drag across extreme distance.
• Proprietary long-stroke reinforced spring mechanism and optimized trigger system deliver consistent, powerful firing at 60 cm with zero performance loss.

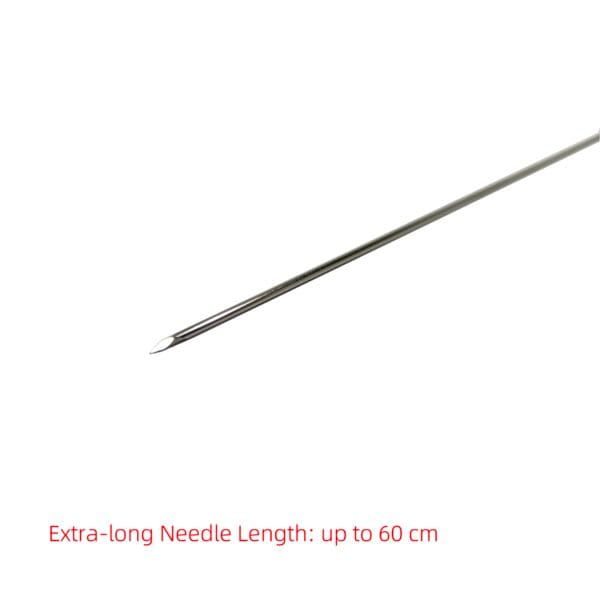

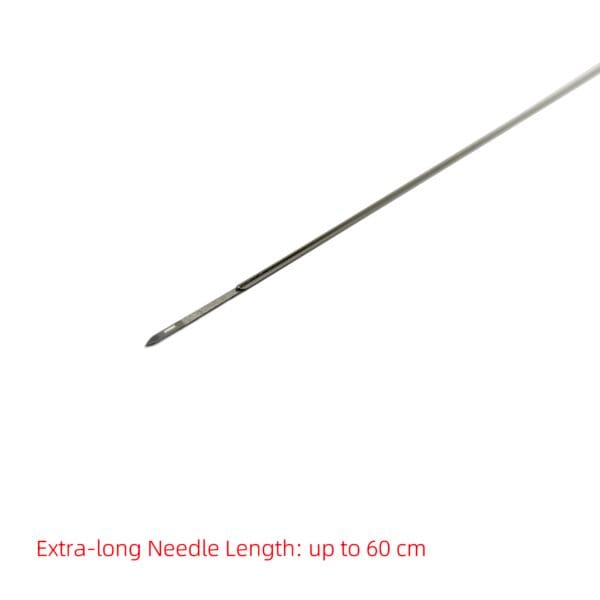

• 15 × 1.6 mm deep sample notch (customizable) surrounded by a 16G cutting cannula (14G–18G available) guarantees large, intact luteal samples even from dense tissue.

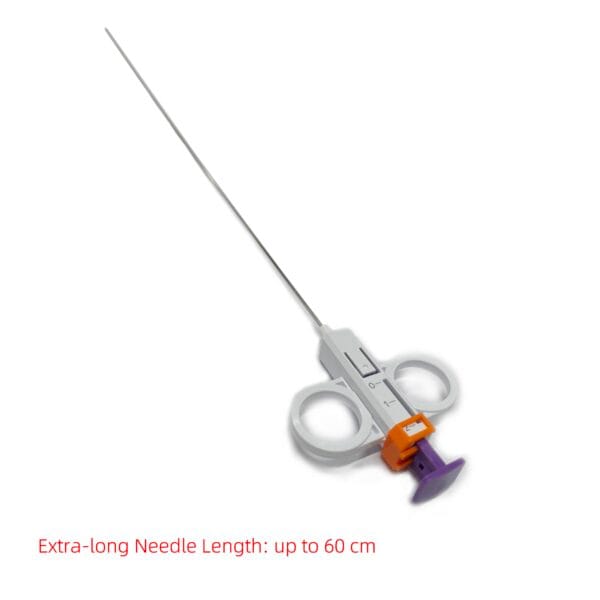

The lightweight ergonomic handle features dual safety locks and one-handed cocking, while the extended rigid shaft maintains perfect linearity during deep transvaginal passage. Fully compatible with all major ultrasound follicle aspiration guides and microconvex transducers.

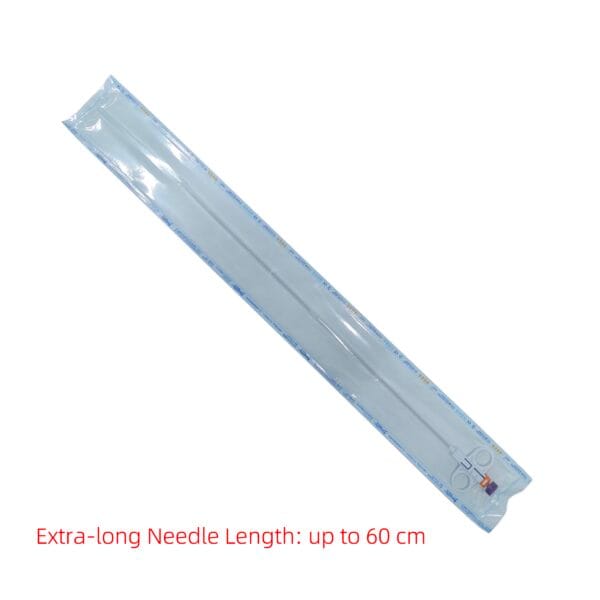

Each ZPT-VELSABN-002 is EO gas sterilized, individually blister-packed, and 100 % inspected under magnification for flawless notch geometry and surface finish. Full customization of gauge, notch depth, handle color, and laser marking is available for research institutes and commercial breeders.

Key Features

• Total Length: 600 mm (60 cm) – world’s longest semi-automatic veterinary ovarian biopsy needle
• Gauge: 14G / 16G / 18G (customizable)
• Sample Notch: 15 × 1.6 mm (customizable depth)
• Material: Medical-grade 304 or 316 stainless steel
• Spring System: Proprietary long-stroke reinforced design
• All In-House: From raw tube to final assembly

Applications

• ZorayPT semi-automatic ovarian biopsy needles are ideal for:
  • Equine & Bovine Corpus Luteum Research
  • Ovarian Stroma Sampling for Fertility Studies
  • Embryo Transfer & Hormonal Profile Programs With ISO 13485 standards and faster lead times, we deliver cost-efficient solutions. Contact us to customize your ZPT-VELSABN-002.

Why Choose ZorayPT?

• One-Stop Manufacturing: All in-house processes for seamless quality control.
• ISO 13485 Certified: Meets global standards in a Class 100,000 cleanroom.
• Superior Quality: Only manufacturer mastering 60 cm semi-auto veterinary ovarian biopsy.
• Faster Lead Times: In-house spring & tube production.
• Cost-Efficiency: Direct factory pricing for breeders & research centers. Lead large-animal reproductive medicine with ZorayPT’s ZPT-VELSABN-002. Request a quote today!

Semi-automatic Ovarian Biopsy Needle Specifications
